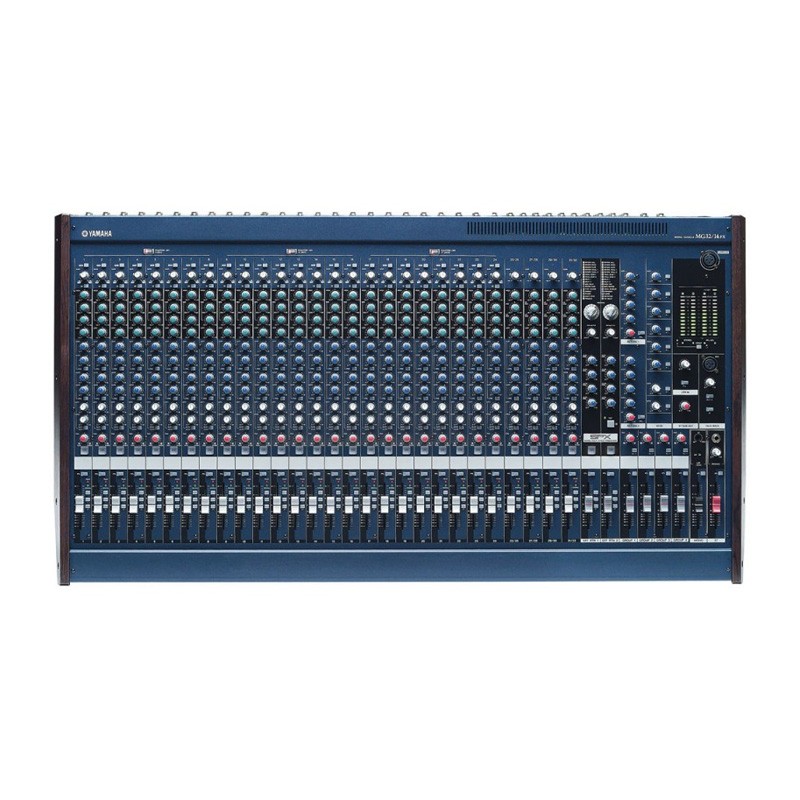

میکسر صدا یاماها Yamaha MG32-14FX

تماس بگیرید

شناسه محصول: MX26856

در انبار موجود نمی باشد

Specifications

Outline		MG32/14FX	MG24/14FX
Mixing capability	Mixing channels	24 Mono + 4 Stereo	16 Mono + 4 Stereo
	GROUP	4	4
	AUX	8 (2x alternative)	8 (2x alternative)
	MAIN	Stereo, Mono	Stereo, Mono
	Input channel functions	CH1-24: HPF, 3-band mid-sweep PEQ, Intert I/O; CH25-32: 4-band PEQ	CH1-16: HPF, 3-band mid-sweep PEQ, Intert I/O; CH17-24: 4-band PEQ
	Output channel functions	LPF on Mono out	LPF on Mono out
	On-board processors	2x SPX	2x SPX
I/O	Mic inputs	24	16
	Phantom power	+48V DC; ON/OFF per 8ch	+48V DC; ON/OFF per 8ch
	Line inputs	4x Stereo	4x Stereo
	Control and others	Foot switch	Foot switch
General specifications		MG32/14FX	MG24/14FX
Total harmonic distortion		Less than 0.1%	Less than 0.1%
Frequency response		0, +1.0, -3dB 20Hz-20kHz	0, +1.0, -3dB 20Hz-20kHz
Hum & noise level	Equivalent input noise	-128dBu	-128dBu
Hum & noise level	Residual output noise	-99dBu	-99dBu
Crosstalk		-70dB	-70dB
Power requirements		Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz	Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz
Power consumption		120W	100W
Dimensions	W	1027mm; 40-7/16in	819mm; 32-1/4in
	H	140mm; 5-1/2in	140mm; 5-1/2in
	D	551mm; 21-11/16in	551mm; 21-11/16in
Net weight		22kg; 48.5lbs	18.5kg; 40.8lbs
Accessories		Owner’s Manual, AC power cord	Owner’s Manual, AC power cord

Input termial	PAD	Gain Trim	Actual Load Impedance	For Use WithNominal	Input Level		Connector In Mixer
Input termial	PAD	Gain Trim	Actual Load Impedance	For Use WithNominal	Nominal	Max. before Clip	Connector In Mixer
CH INPUT [A, B] *1	0	-60	3 ohms	50-600ohm Mics & 600 ohm Lines	-60dBu	-40dBu	A: XLR-3-31type B: TRS phone jack
	26	-60			-34dBu	-14dBu
	0	-16			-16dBu	+4dBu
	26	-16			+10dBu	+30dBu
ST CH INPUT *2		-34	10 ohms	600ohm Lines	-34dBu	-14dBu	TRS phone jack RCA Pin jack
ST CH INPUT *2		10	10 ohms	600ohm Lines	+10dBu	+30dBu	TRS phone jack RCA Pin jack
CH INSERT IN *1			10kohms	600ohm Lines	0dBu	+20dBu	TRS phone jack
GROUP INSERT IN (1-4)			10kohms	600ohm Lines	0dBu	+20dBu	TRS phone jack
SUB IN (1, 2) [L, R]			10kohms	600ohm Lines	+4dBu	+24dBu	TRS phone jack
TB IN			10kohms	50-600ohm Mics	-50dBu	-30dBu	XLR-3-31 type
2TR IN [L, R]			10kohms	600ohm Lines	-10dBV	+10dBV	RCA Pin jack

*0dBu=0.775 Vrms.
*1. MG24/14FX: 1-16, MG32/14FX: 1-24
*2. MG24/14FX: 17-20,MG32/14FX: 25-28

Connection	Actual Source Impedance	For Use WithNominal	Output Level		Connector In Mixer
Connection	Actual Source Impedance	For Use WithNominal	Nominal	Max. before Clip	Connector In Mixer
ST OUT [L, R] MONO OUT	75ohms	600ohms Lines	+4dBu	+24dBu	XLR-3-32 type
GROUP OUT (1-4) AUX OUT (1-6)	150ohms	600ohms Lines	+4dBu	+20dBu	TRS phone jack
ST SUB OUT [L, R]) EFFECT OUT (1, 2)	150ohms	10kohms Lines	+4dBu	+20dBu	TRS phone jack
CH INSERT OUT *1 GROUP INSERT OUT (1-4) ST INSERT OUT [L, R]	150ohms	10kohms Lines	0dBu	+20dBu	TRS phone jack
REC OUT [L, R]	600ohms	10kohms Lines	-10dBV	+10dBV	RCA Pin jack
PHONES OUT	100ohms	40ohms Phones	3mW	75mW	ST phone jack

*0dBu=0.775 Vrms.

نوع میکسر	آنالوگ
تعداد کانال	32 کانال
تعداد ورودی میکروفون	24x XLR
تعداد ورودی آنالوگ (Line In)	24x TRS, 8x 1/4, RCA 4x RCA tape
دیگر ورودی ها	ندارد
خروجی اصلی	2x TRS, 2x TRS
خروجی Direct	ندارد
دیگر خروجی ها	2x RCA tape, 2x TRS, 4x Group
خروجی هدفون	1x TRS
Send/Return I/O	6x aux sends4x aux returns
فانتوم پاور	دارد
تعداد باندهای اکولایزر EQ Bands	3x band EQ sweepable mid Ch 1-16, 4x Band EQ Ch 17-24
AUX Sends	4x Pre/Post, 2x EFX
Busses/Groups	4x Group
Faders	36x Faders
Channel Insert	دارد
افکت	دارد
پورت اتصال به کامپیوتر	ندارد
تاک بک Talk Back	دارد
