Features:

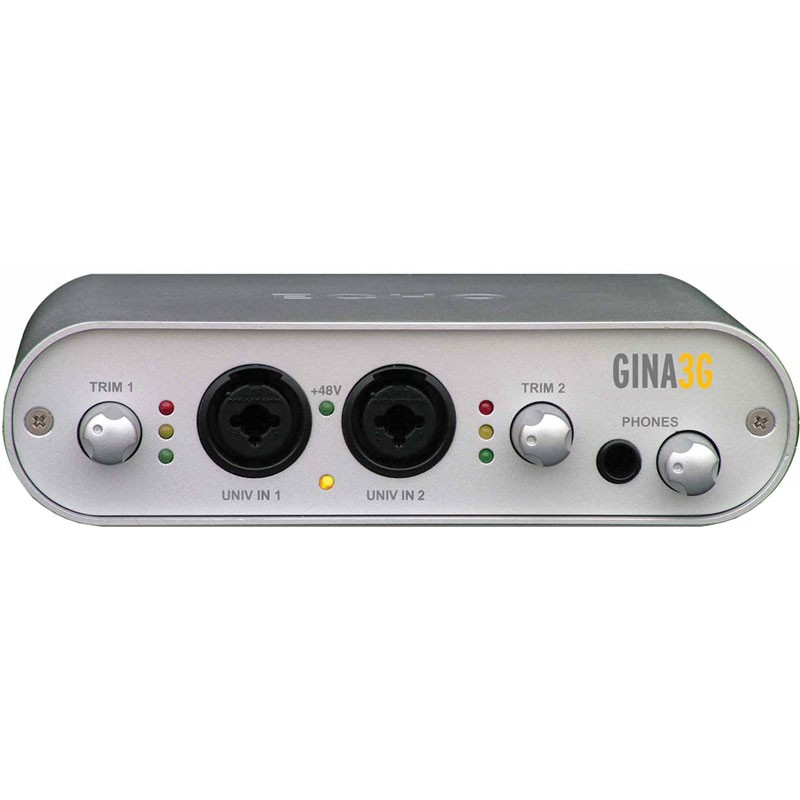

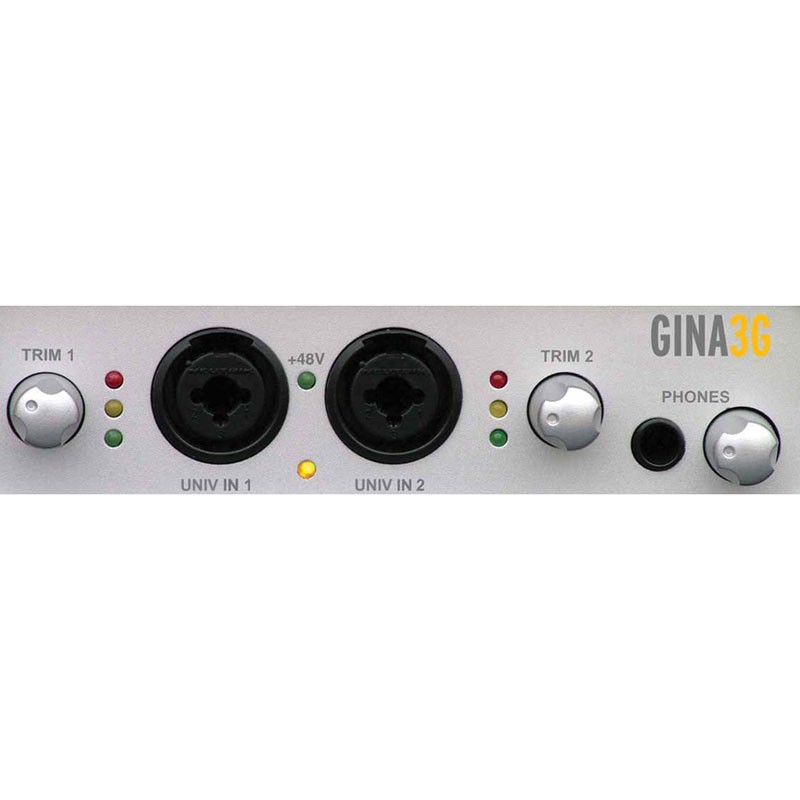

• 2 auto-sensing inputs (mic/guitar/line): meters, trim knobs, phantom power, and channel inserts
• 6 balanced 1/4″ analog inputs: 113dB (A-weighted) dynamic range; +4dBu/-10dBV nominal levels

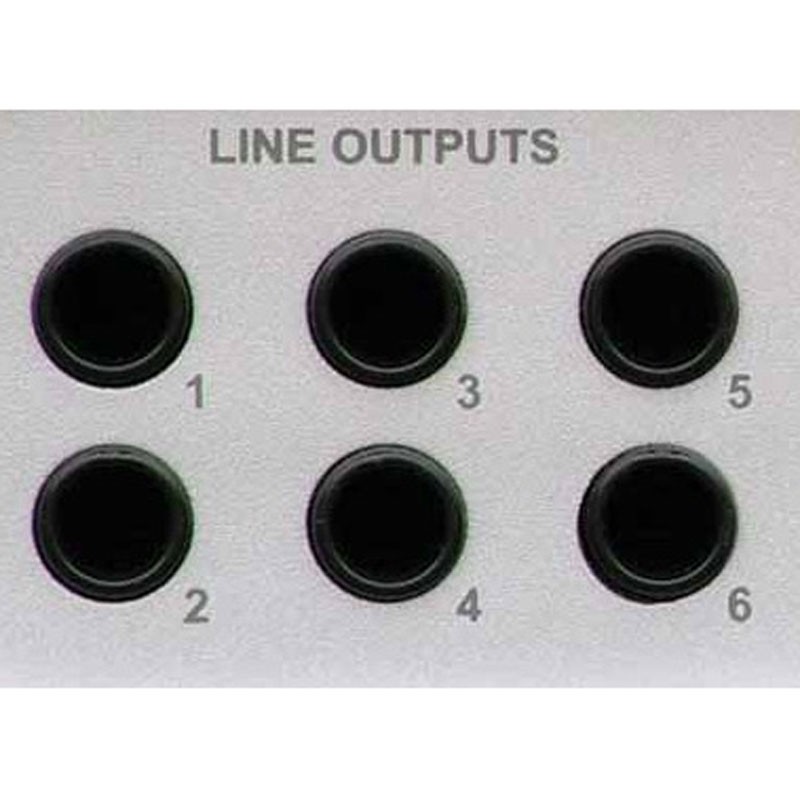

• 8 balanced 1/4″ analog outputs: 114dB (A-weighted) dynamic range; +4dBu/-10dBV nominal levels
• S/PDIF I/O (coax & optical) at 24-bit/96kHz

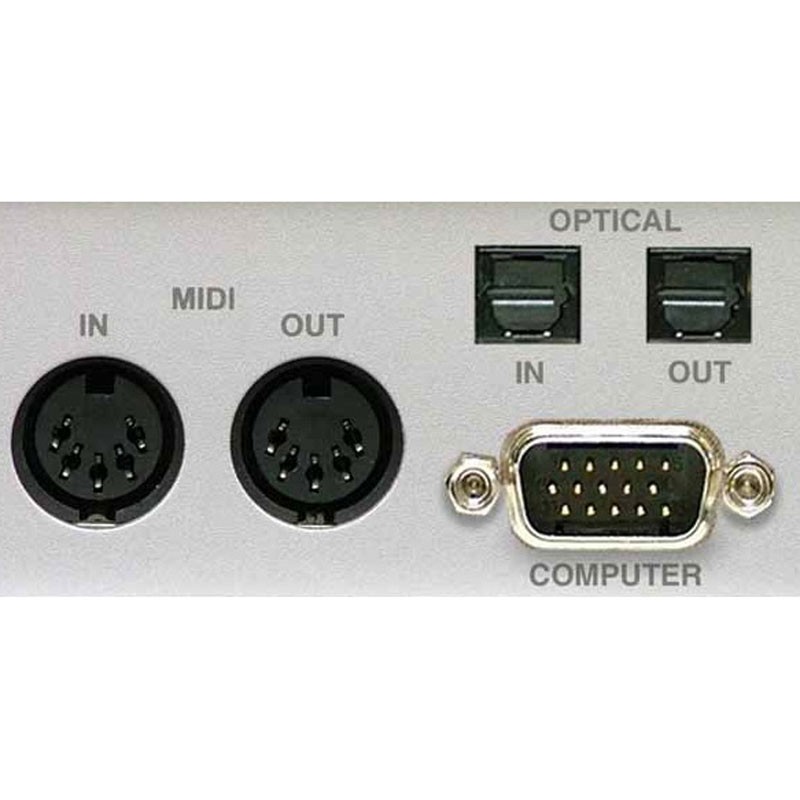

• ADAT optical digital I/O
• MIDI I/O
• Stereo headphone output with volume knob
• Sync via word, S/PDIF, ADAT, or MTC
• Supports full duplex 10 channel in, 14 channel out operation
• Heavy-duty aluminum case
• 8′ cable to connect to PC
• PCI bus mastering interface: bus powered; works with PCI-X (3.3/5 volt) & Power Mac G5
• A/D & D/A converters in external breakout box
• 56-bit/100mHz DSP for digital mixing: near zero latency hardware monitoring
• Software console for monitoring, metering, and setting levels
• Low-latency drivers support all major pro audio software: Low Latency ASIO 2.0; GSIF 2.0 (Gigastudio 3 w/ low latency MIDI); WDM kernel streaming mode; CoreAudio & CoreMIDI
• Surround sound support: 5.1 & 7.1 output w/ delay management; AC3, DTS, & WMA9 output over S/PDIF
• SuperChannel resource sharing: Split I/O between multiple applications
