Features:

• Extensive I/O with four IMPACT II preamps, fully supporting surround
• Digital Mixer: 24/8-ch 48-bit double precision summing 56-bit internal processing
• DSP: World-class “Studio” versions of Fabrik based on System 6000 algorithms
• Speaker management from AIR technology, including bass management

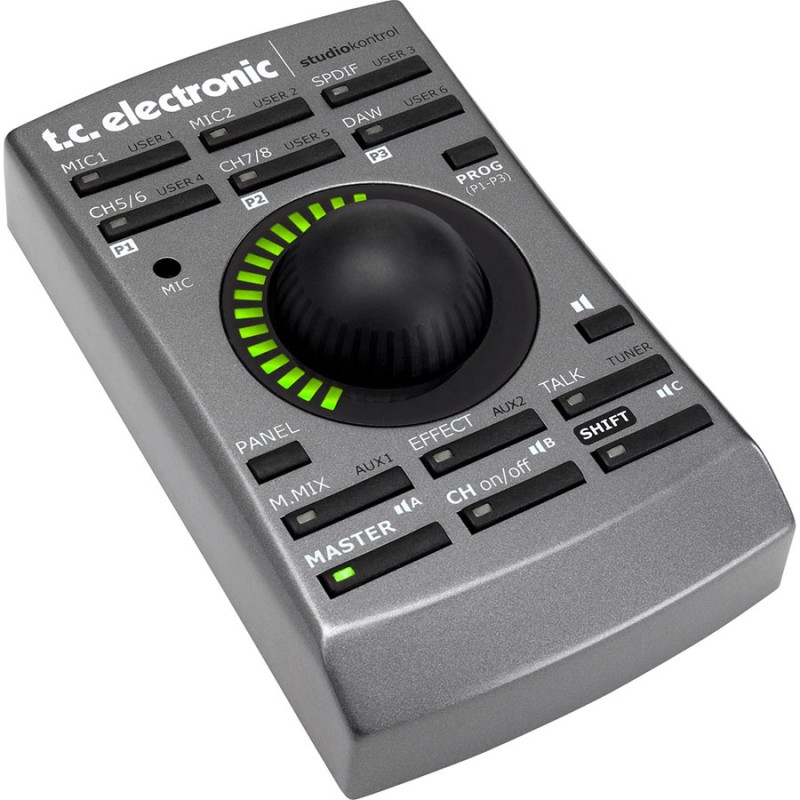

• Remote with integrated talkback microphone
• 12 analog inputs, 12 analog outputs simultaneously
• High-resolution input meter
• 96kHz ADAT (8 channels SMUX), word clock, and S/PDIF
• Digitally controlled analog main XLR outputs
• Dual headphone outs with individual level control and source
• Full 48 bit double precision summing on all mix busses with 56-bit internal processing
• Talkback with selectable dim setting and listen back feature
• Aux send busses with flexible output routing
• Four simultaneous 4-band EQ, multiband compression channel strip and mastering effects
• Built-in reverb based on TC Electronic Reverb 4000 technology
• All plug-ins VST and AU compatible
• Intuitive guitar tuner
• ResFilter plug-in
• Assimilator Konnekt plug-in
• Hardware effects Integrator plug-in
• 24-bit/192kHz
• In: 4 x XLR, 8 x TRS
• Out: 2 x XLR, 8 x TRS, 2 x phones
• Dig I/O: Dig I/O: 2 x ADAT, S/PDIF
• Word clock
• MIDI I/O
