Features:

• Supports 24-bit/192kHz USB transmission and AD/DA conversion
• Support for Mac and Windows operating systems
• 4-in/4-out audio streaming from a PC connected via USB 2.0
• Burr-Brown PCM4220 AD converter, PCM1795 DA converter
• HDIA mic preamps: -128dB EIN
• Thin film metal resistors with outstanding noise performance
• High audio quality film capacitors with low distortion
• Low latency monitoring through the DSP mixer
• DSP mixer can be switched between multitrack and stereo mix modes
• Line or digital outputs can be selected using the DSP mixer
• DSP dynamics effects: compressor, noise suppressor, de-essoer, exciter, EQ, limiter/low cut
• Effects can be applied to inputs, outputs or the master
• DSP REVERB (hall, room, live, studio, plate) send effect is ideal for record monitoring
• Link line function enables volume control of powered monitors
• Single punch MIXER PANEL button
• Strong, highly durable aluminum body

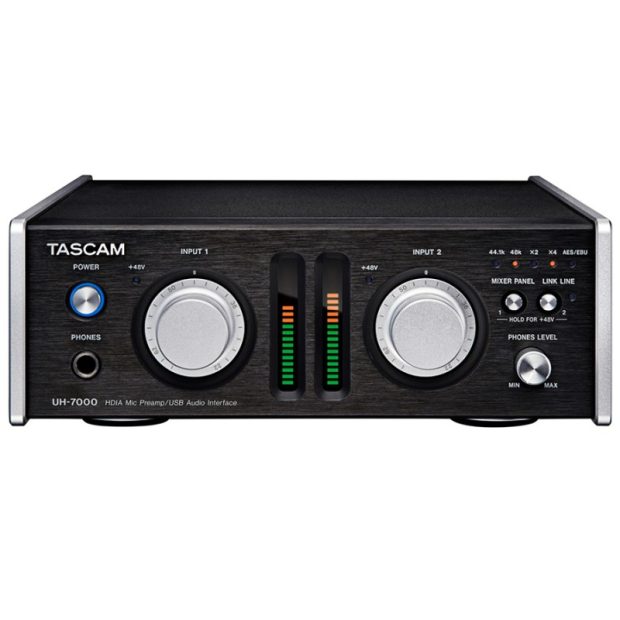

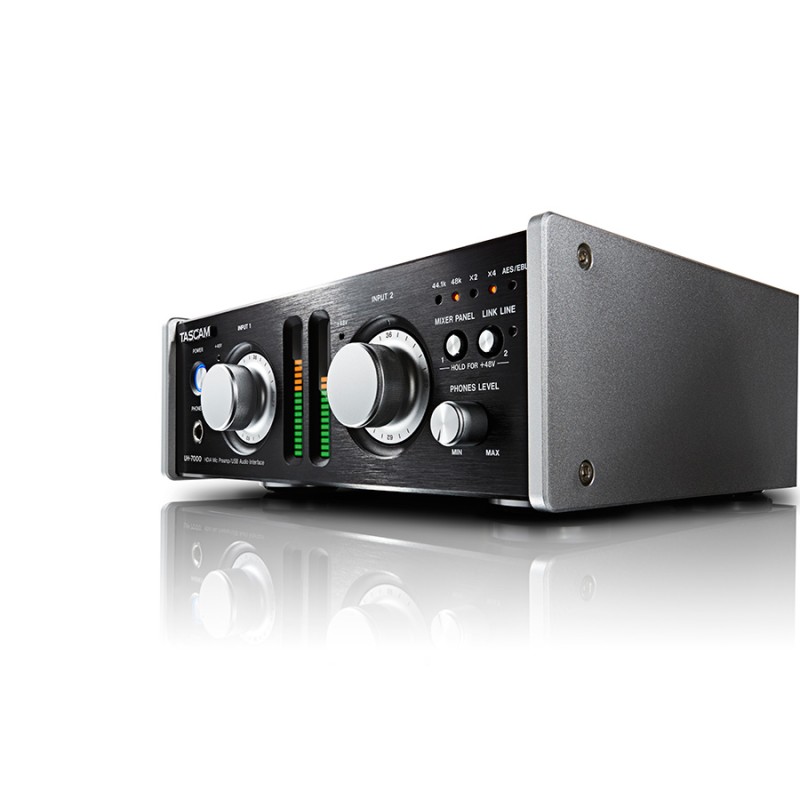

• Large INPUT level knobs enable precise adjustment of input levels
• Two 20-segment LED level meters
• Standard TRS headphones output jack (45mW/channel output)
• +48 volt Phantom power supply

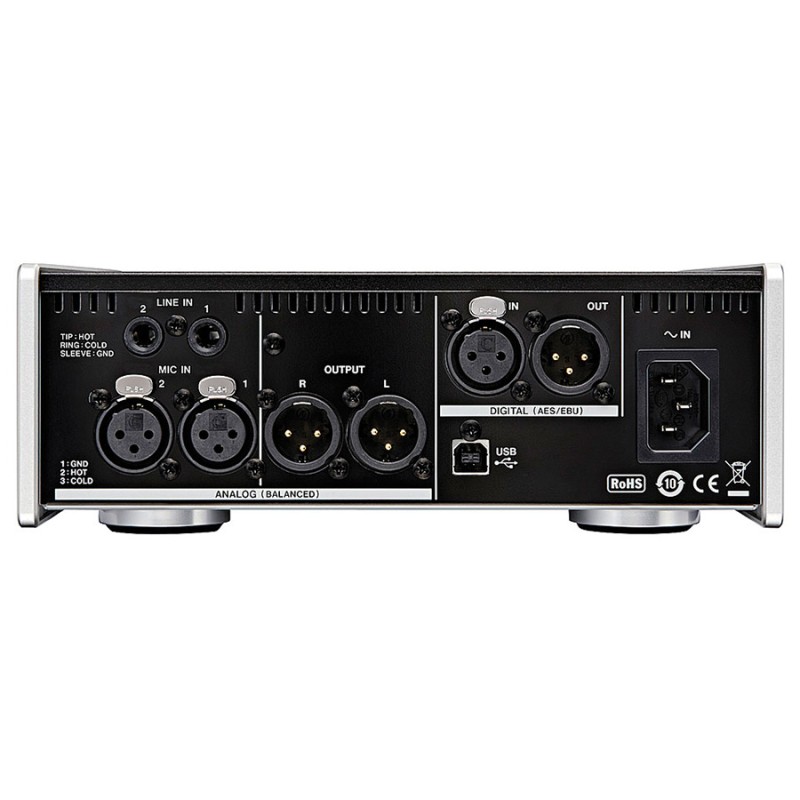

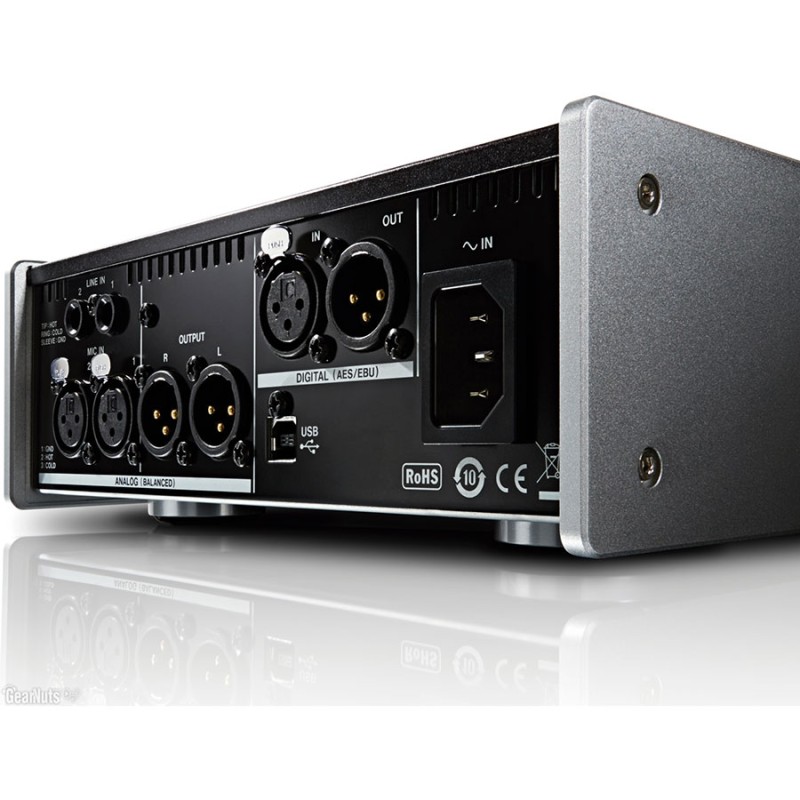

• Two balanced analog XLR jacks for both input and output; two balanced analog TRS input jacks
• XLR digital I/O jacks support AES3-2003/IEC60958-4 (AES/EBU) and IEC60958-3 (S/PDIF) formats
• Professional output specifications (maximum output level: +24dBu)
• Convenient half-rack size; three-pronged inlet power cable
• Confirmed operation with major DAW software, including Sonar X3, ProTools, Cubase, and Live
• RoHS compliant
