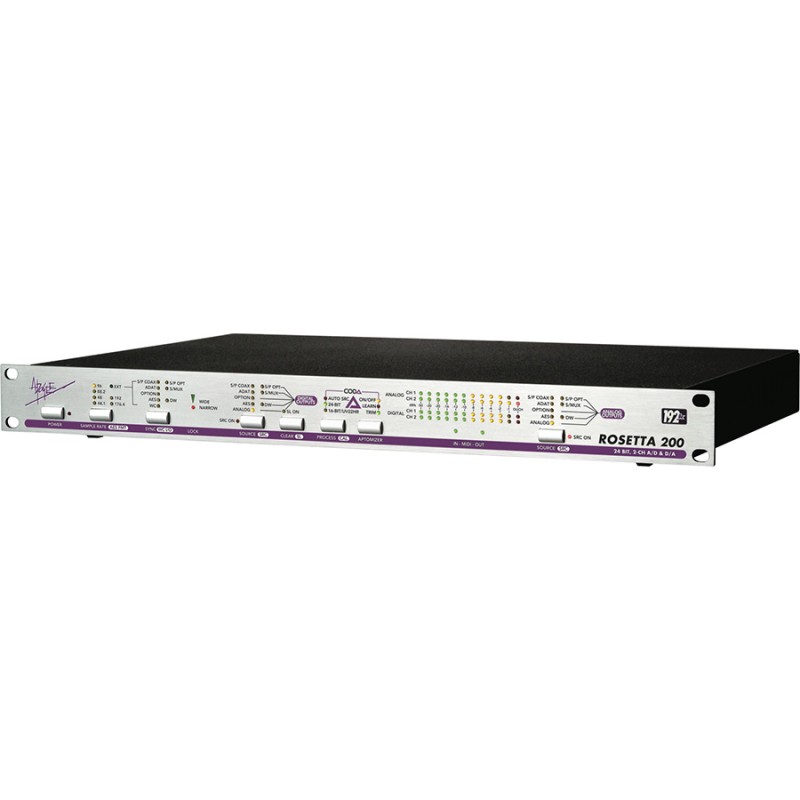

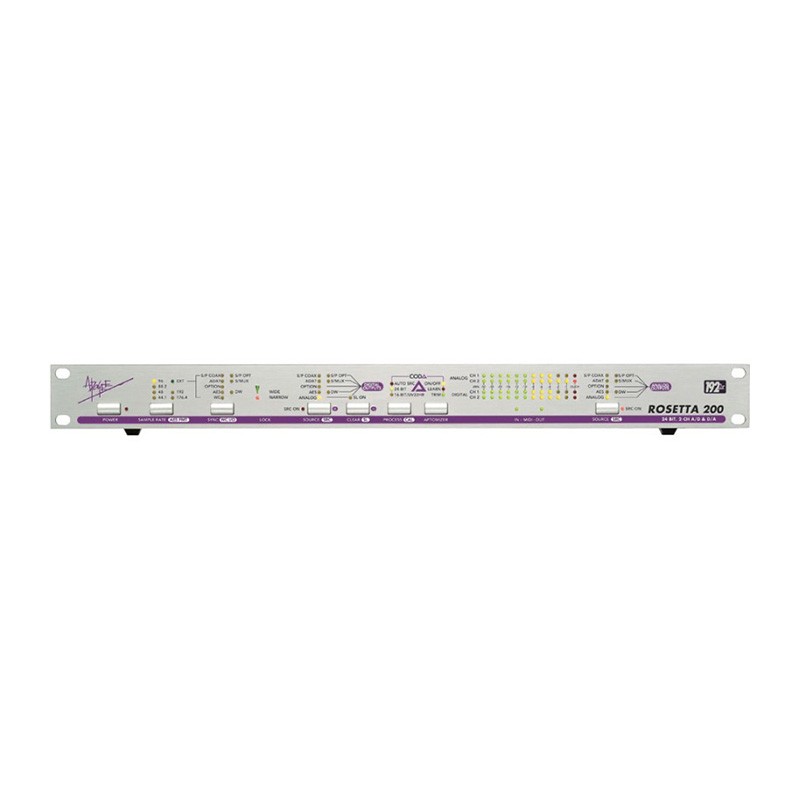

Features:

• 2 channels of premium 24-bit AD/DA conversion
• Sample rates up to 192kHz with Apogee’s “Intelliclock”
• 2 channels of AES, S/PDIF (coax & optical), and ADAT/SMUX I/O
• MIDI I/O
• Optional expansion card for direct connection to Pro Tools HD (X-HD card)
• Optional expansion card for direct connection to Pro Tools Mix (X-Digi-Mix card)
• “Soft Limit” for maximum digital level without overs
• C.O.D.A.; format conversion, word length reduction with Apogee’s UV22HR and sample rate conversion
• Front panel calibration via trim pots
• Full channel metering

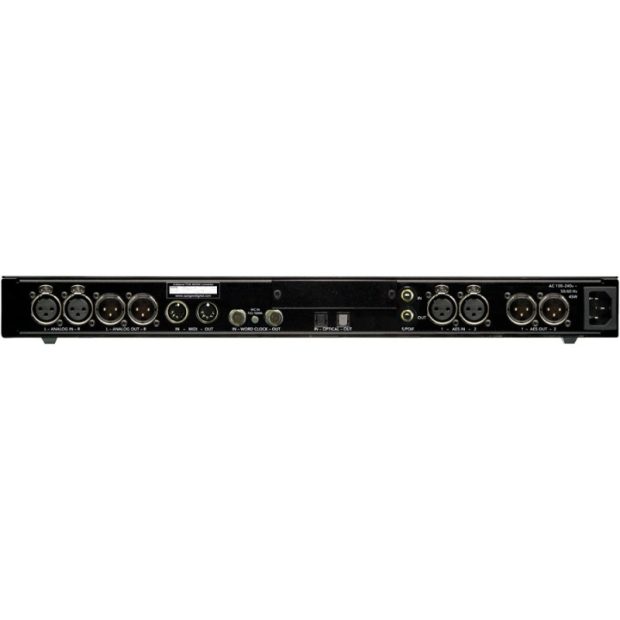

INPUTS:

• Analog In 1-2: Balanced, XLR connectors
• AES in: x 2, transformer balanced, XLR connectors
• S/ PDIF In: Toslink and Coax
• ADAT/SMUX In: Toslink
• WC In: BNC 75 ohm

OUTPUTS:

• Analog Out 1-2: Balanced, XLR connector.
• AES Out: x 2, transformer balanced, XLR connector
• S/ PDIF Out: Toslink and Coax
• ADAT/SMUX Out: Toslink
• WC Out: BNC 75 ohm
