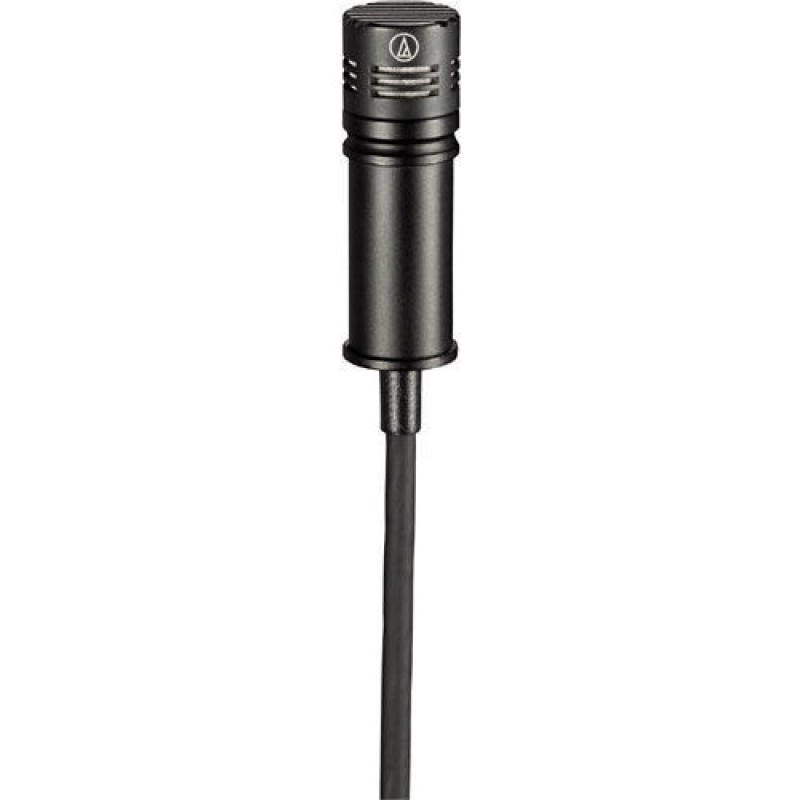

Features:

• Low-profile design for minimum visibility

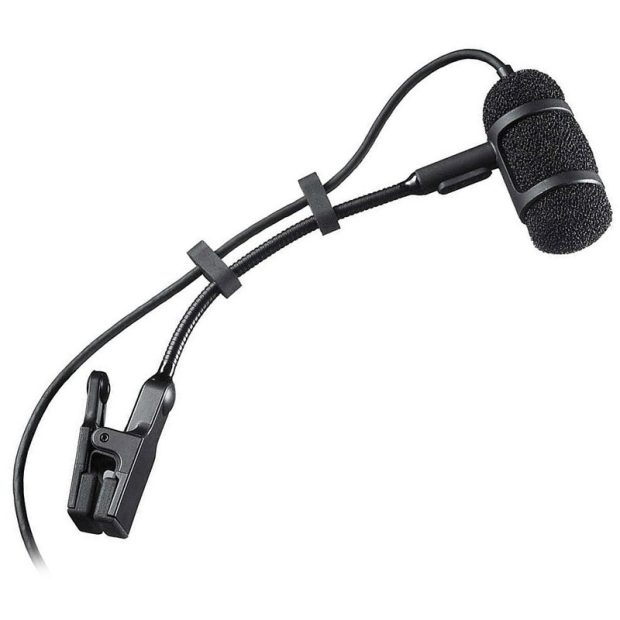

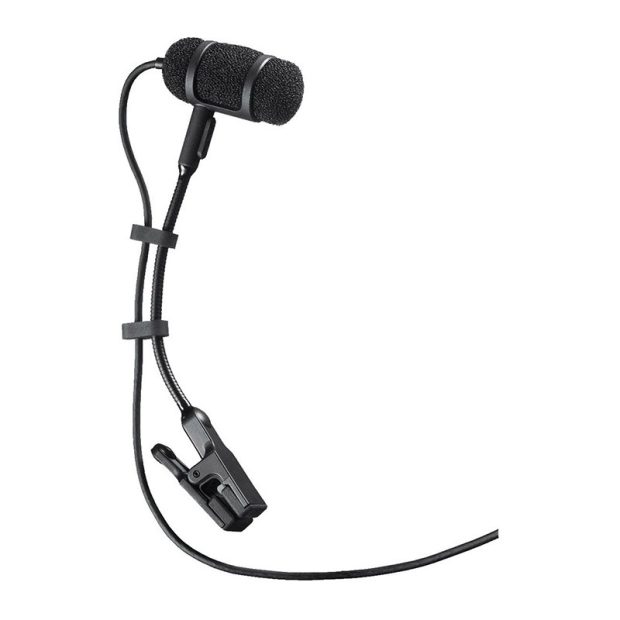

• UniMount clip permits accurate positioning, provides shock resistance and protects element
• Unique violin mount permits unobtrusive placement of microphone between the instrument’s bridge and tailpiece
• Crisp, clear, well-balanced response, even at high SPLs
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Interchangeable elements available for hypercardioid and omnidirectional polar patterns
• Corrosion-resistant contacts from gold-plated XLRM-type connector
• Rugged, all-metal design and construction for years of trouble-free use
• Element: fixed-charge back plate permanently polarized condenser
• Polar pattern: cardioid
• Frequency response: 40-20,000 hz
• Low frequency roll-off: 80 hz, 12 db/octave
• Open circuit sensitivity: -49 db (3.5 Mv) re 1v at 1 pa
• Impedance: 50 ohms
• Maximum input sound level: 149 db spl, 1 khz at 1% t.H.D.
• Dynamic range (typical): 122 db, 1 khz at max spl
• Signal-to-noise ratio: 67 db, 1 khz at 1 pa
• Phantom power requirements: 11-52v dc, 3.5 Ma typical
• Switch: Flat, roll-off
• Weight (microphone): 0.5 oz
• Weight (power module): 2.9 oz
• Dimensions (microphone): 1.49″ long, 0.48″ diameter
• Dimensions (power module): 3.66″ long, 0.74″ diameter
• Output connector (power module): Integral 3-pin XLRM-type
• Cable: 13.1′ long (permanently attached to microphone), 0.13″ diameter, 2-conductor shielded cable
• Accessories furnished: AT8542 power module; AT8418 Unimount microphone instrument mount; AT8468 violin mount;
• Soft protective pouch
