Features:

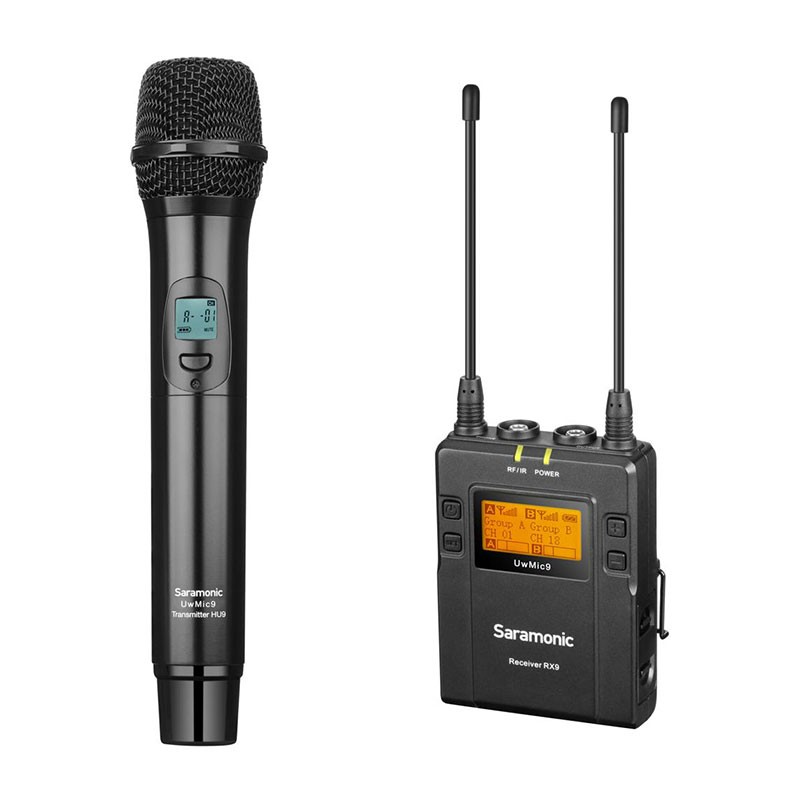

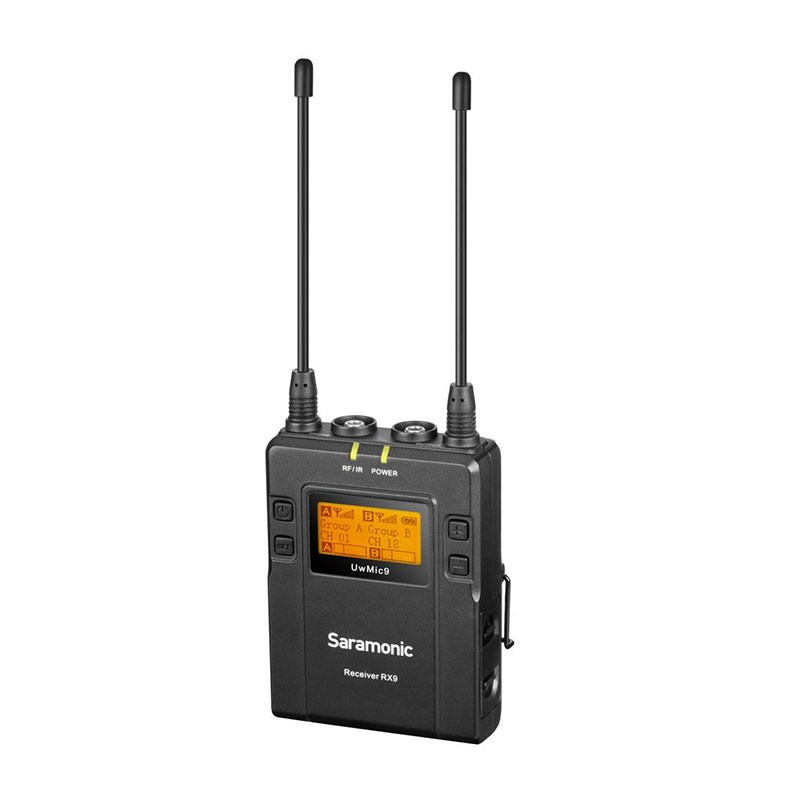

RX9 Receiver
• Channels: 96 selectable channels in 2 groups (A and B)
• Wireless Frequency Range: 514MHz – 596MHz
• Oscillator Type: PLL synthesizer
• Output: Locking 3.5mm TRS mini-jack
• Antenna: 1/4 λ wire antenna
• Audio Output Level: -60dBV
• Headphone Output Level: 30mW (16 ohm)
• Sensitivity: -95dBm
• Signal to Noise Ratio: 70dB or more
• Voice Delay: 12ms
• Reference Deviation: ±5 kHz (-60dBV, 1kHz input)
• Frequency Response: 40Hz to 18kHz (±3dB)

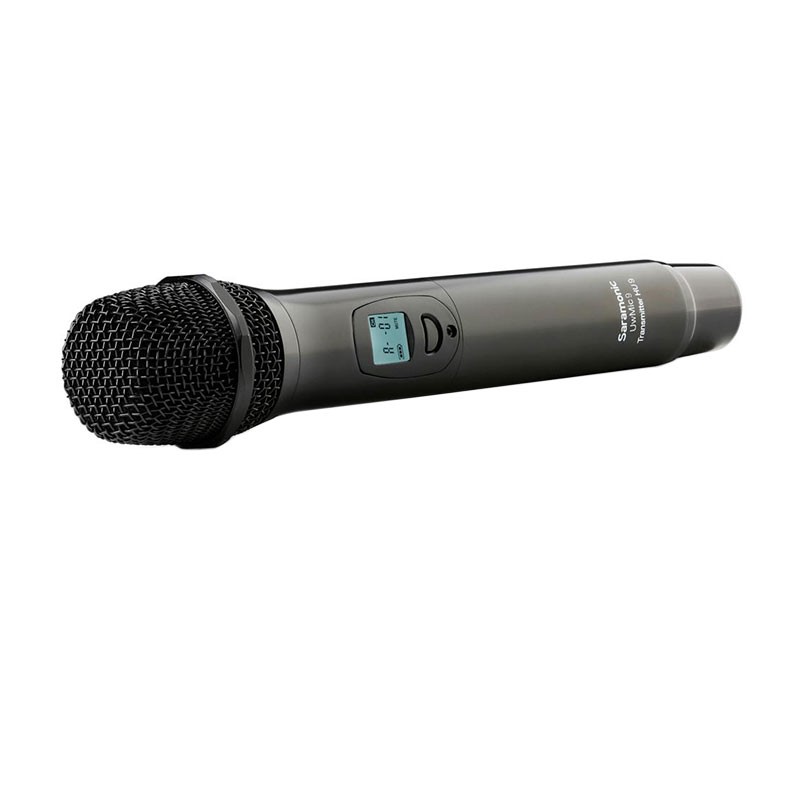

HU9 Transmitter

• Channels: 96 selectable channels in 2 groups (A and B)
• Wireless Frequency Range: 514 MHz – 596 MHz
• Oscillator Type: PLL synthesizer
• Polar Pattern: Cardioid
• Reference audio input level: –60dBV (MIC input, 0dB attenuation)
• Antenna: 1/4 λ wire antenna
• Signal to Noise Ratio: 70dB or more
• Voice Delay: 12ms
• Reference Deviation: ±5 kHz (-60dBV, 1kHz input)
• Frequency Response: 40Hz to 18kHz (±3dB)
• Distortion: 0.5% or less
• Spur Suppression: -60dB
