Features:

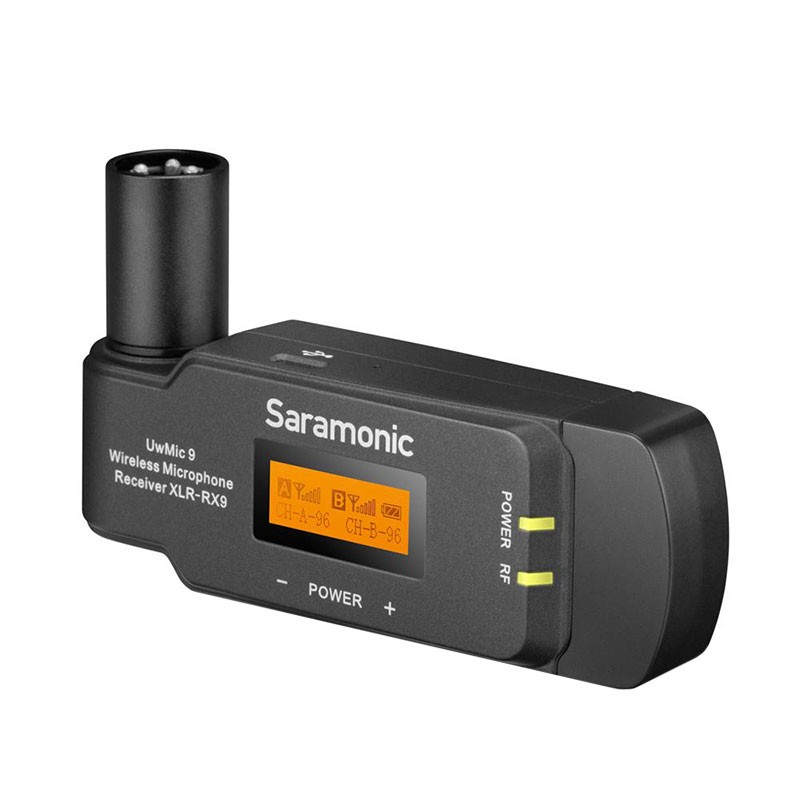

RX-XLR9 Receiver
• Channels: 96 selectable channels in 2 groups (A and B)
• Wireless Frequency Range: 514 MHz – 596 MHz
• Oscillator Type: PLL synthesizer
• Receiver Output Connector: 3-Pin XLR Male
• Output Cable: 1/8” (3.5mm) TRS Output Cable
• Antenna: 1/4 λwire antenna
• Audio Output Level: -60 dBV
• Headphone Output Level: 30mW (16 ohm)
• Receiver Sensitivity: -95 dBm

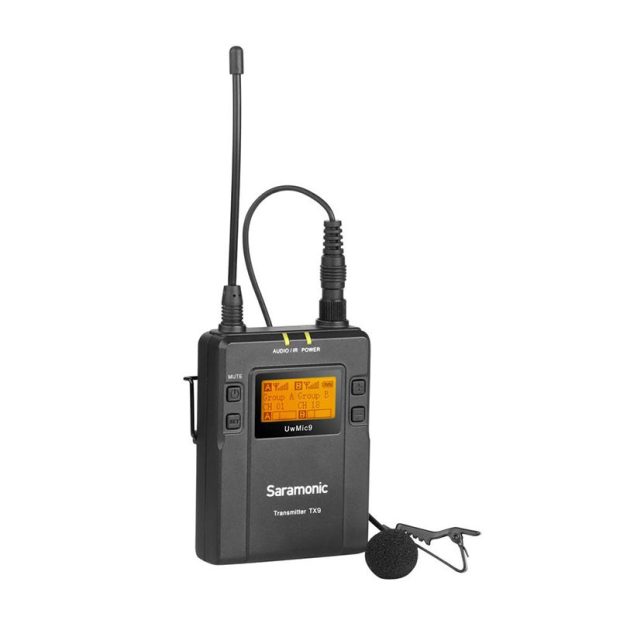

TX9 Transmitter

• Channels: 96 selectable channels in 2 groups (A and B)
• Wireless Frequency Range: 514 MHz – 596 MHz
• Oscillator Type: PLL synthesizer
• Input: Locking 1/8” (3.5mm) TRS mini-jack
• Reference audio input level: –60 dBV (MIC input, 0 dB attenuation)
• Antenna: 1/4 λwire antenna
• Signal to Noise Ratio: 70 dB or more
• Voice Delay: 12 ms
• Reference Deviation: +/- 5 kHz (-60 dBV, 1 kHz input)
• Frequency Response: 40 Hz to 18 kHz (+/- 3dB)
