Features:

• Sumptuous Rupert Neve sound; superlative specs across the board
• Frequency response: <10Hz–30kHz (+/-0.1dB); <5Hz–70kHz (+/-0.25dB); <5Hz–140kHz (-3dB)
• Input: Balanced XLR/TRS combo jack input (may be used for mic or line signals)
• 48V phantom power: Push-button switch illuminates RED when engaged
• Class A mic preamp; Gain: 72dB, including 6dB of fine trim control
• Ø (Polarity): Push-button switch illuminates amber when engaged
• Trim: 31-detent potentiometer allows adjustment of preamp gain within a range of +/-6dB
• HPF: Push-button switch illuminates green when highpass filter (adjustable from 20Hz–250Hz) is engaged
• EQ section: 3-band, +/-12dB, with LF and HF shelves (2 selectable frequencies each) and midband peaking (31 selectable frequencies)
• Compressor with threshold, release, make-up gain, and pre/post EQ switch
• Variable Silk harmonic enhancement with Red and Blue modes and 31-step Texture (amount) control
• 8-segment LED meters indicate compressor gain reduction (dB) and output level (dBu)

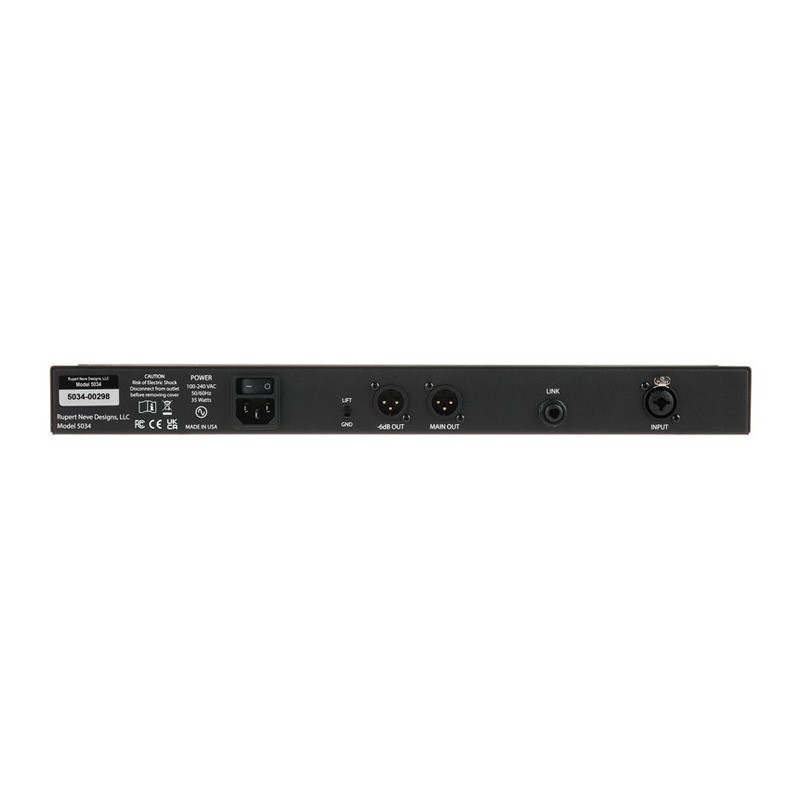

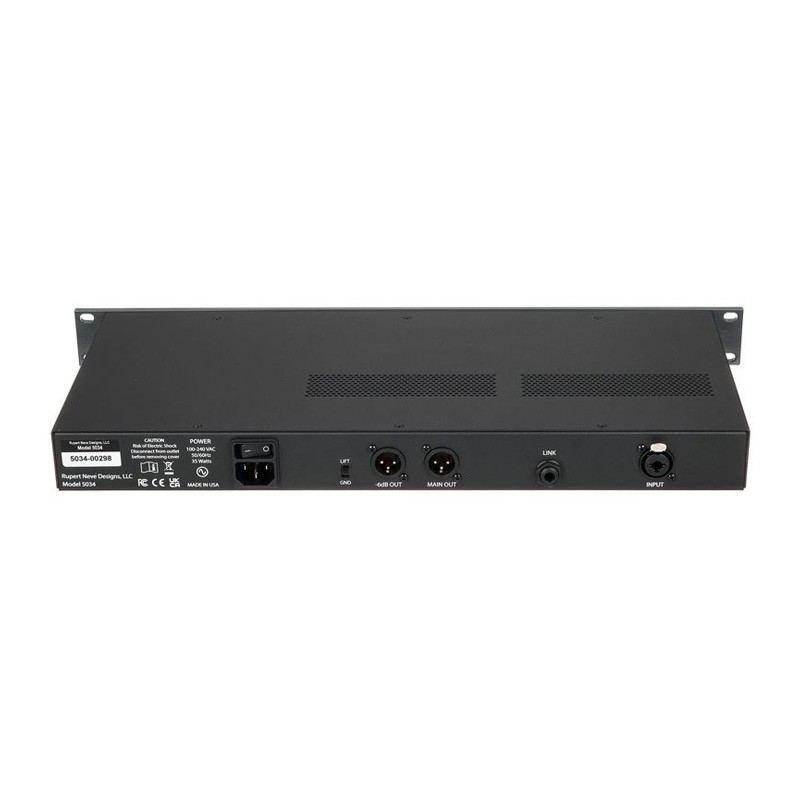

• Custom transformer outputs: Balanced XLR main line-level output; separate -6dBu XLR output
• Ground Lift: helps isolate unit from ground interference (operable on both outputs)
• Link: 1/4-inch TRS jack for linking 2 Newton Channel compressors stereo operation
• Internal universal power supply provides reliable 90–240V power worldwide
• IEC AC power inlet with integrated power switch
• Robust 1U rackmount chassis
