Features:

• Tube preamp stage with mic, line and instrument connections
• Tube compressor section with variable control of all parameters and bothhard/soft knee modes
• Four band tube EQ section with swept LF/HF bands and parametric mids
• Optical output limiter for transparent brick wall limiting
• VU metering of input level, output level and gain reduction
• Full stereo linking of compressor, EQ and limiter sections

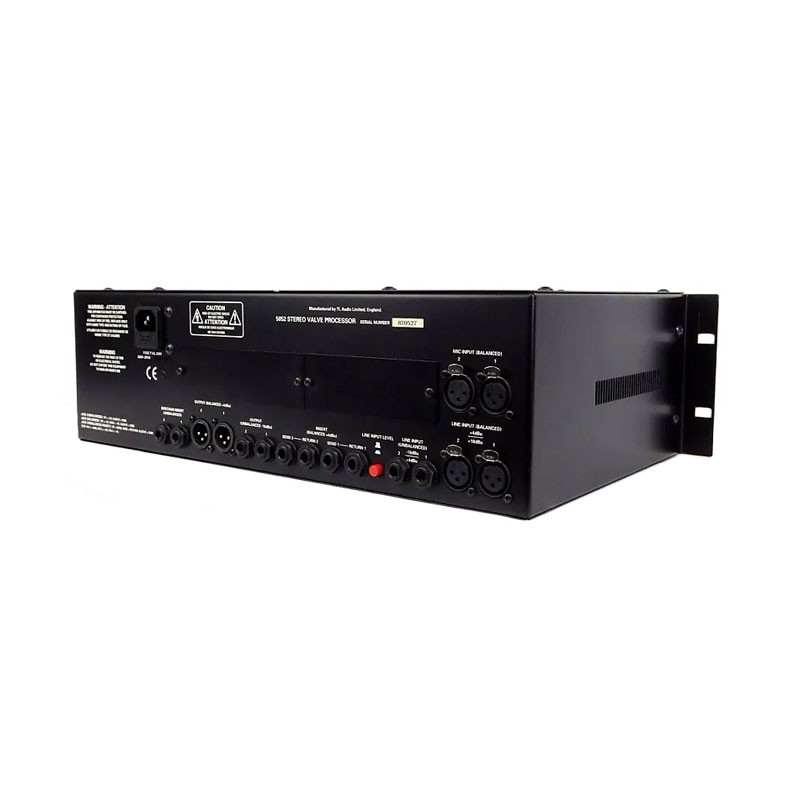

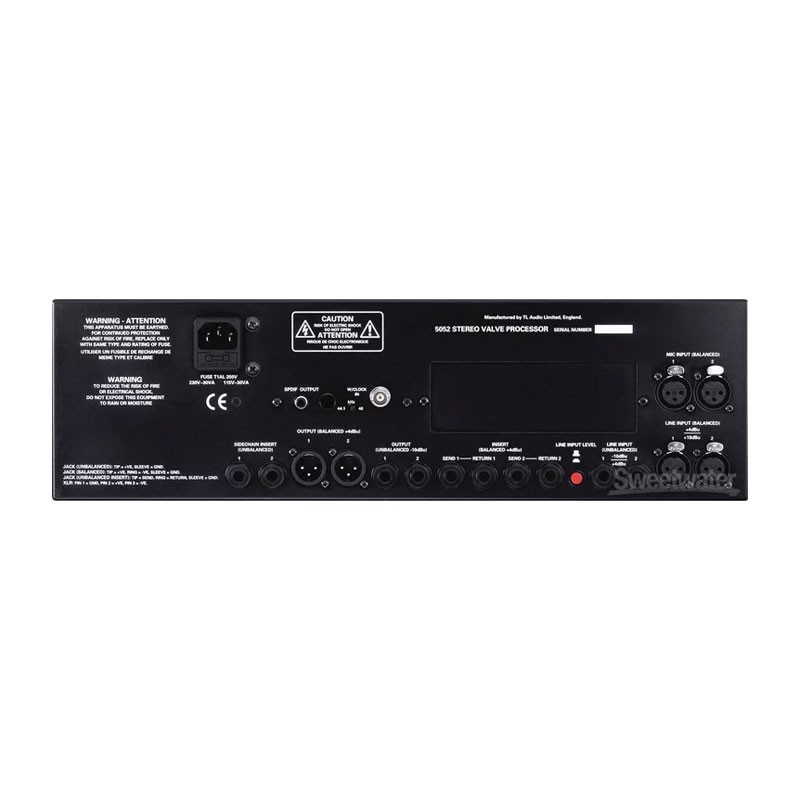

• A wealth of analog input, output and insert connections
• 24-bit digital interfacing via the optional DO-2 digital output card
• Preamp Input Gain: +16 to +60dB (mic input), -20 to +20dB (line input)
• Compressor: Threshold: +10 to -20dB, Ratio: 1:1.5 to 1:30, Attack: 0.5mS to 50mS ,Release: 40mS to 4S, Gain Make Up: 0 to +20dB
• Equalizer: LF band: +/-15dB from 30Hz to 1kHz, shelving or peaking modes, LM band: +/- 15dB from 50Hz to 3kHz, fully parametric, (Q variable between 0.5 and 5), HM band: +/- 15dB from 1kHz to 12kHz, fully parametric (Q variable between 0.5 and 5), HF band: +/- 15dB from 3kHz to 20kHz, shelving or peaking modes
• Limiter: Threshold variable: 0 to +20dB
• Master Section: Output Gain: to +15dB
• PSU: Internally adjustable for 115/230V operation
• Typical consumption: 30VA
• Dimensions: 483 x 250 x 132mm (3U 19″ rack mounting)
