Features:

• GAIN REDUCTION: Up to 40 dB
• DISTORTION: Less than 0.5% THD (0.25% typical) at ±10 dBm
• RESPONSE: ±0,1 dB 30 cycles to 15 Kcycles
• NOISE: 70 dB below +10 dBm output level
• GAIN: 40 dB ± 1dB
• OUTPUT LEVEL: +10 dB nominal, + 16 dB maximum
• INPUT LEVEL: + 16 dB maximum
• ATTACK TIME: @ 10 microseconds
• RELEASE TIME: 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release

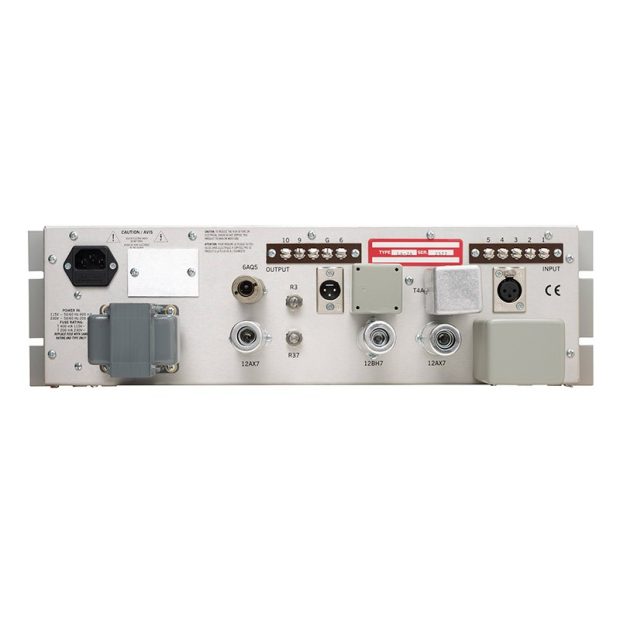

• INPUT IMPEDANCE: 50, 150, 250, 600 ohms
• OUTPUT IMPEDANCE: 50, 150, 250, 600 ohms

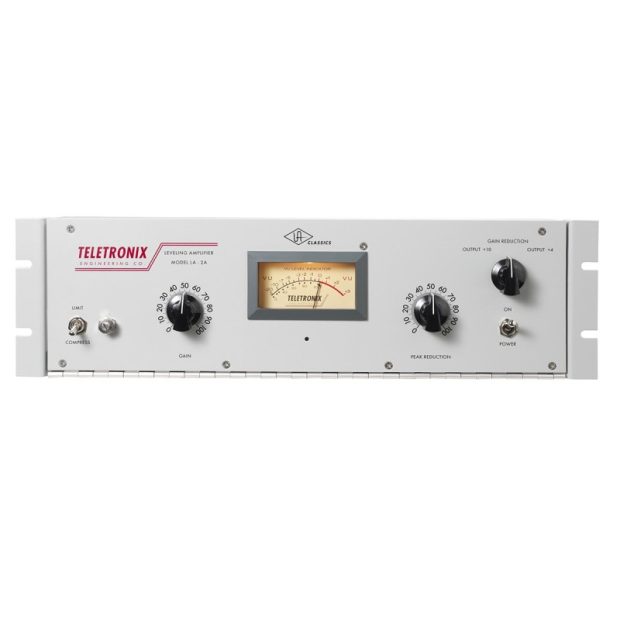

• CONTROLS: Gain, Peak Reduction and Meter selector
• METER: dB gain reduction and dB output
• DIMENSIONS: 19″ standard rackmount chassis
• POWER REQUIREMENTS: 35 watts, 120/240 volts, 50/60 cps
