Features:

• Classic Solid-State Opto-Compressor
• Custom UA transformers and T4 cell
• Discrete, Class A amplifier: up to 50dB gain
• Rear-panel “Gain Mod” switch for gain control
• Designed by ex-UREI engineer Dennis Fink

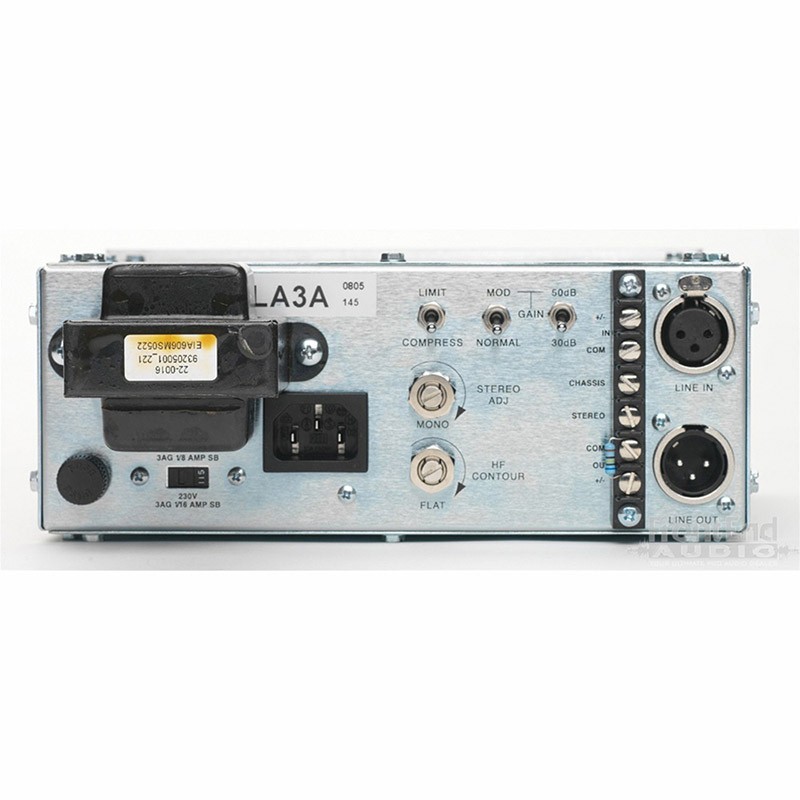

• External connections: Jones Barrier terminals and XLR connectors
• Gain Reduction: up to 40dB
• Distortion: Less than 0.33% at +24dBm
• Frequency Response: 20Hz – 20kHz +/- 0.5dB
• Noise Floor: +-80dB below program at threshold of limiting
• Gain: 30 +/- 1dB, 50 +/- 1dB
• Output Level: +20dBm nominal
• Input Level: 0dBm @ 50dB gain; +20dBm @ 30dB gain
• Attack: 1.5ms or less
• Release: 0.06s for 50% release
